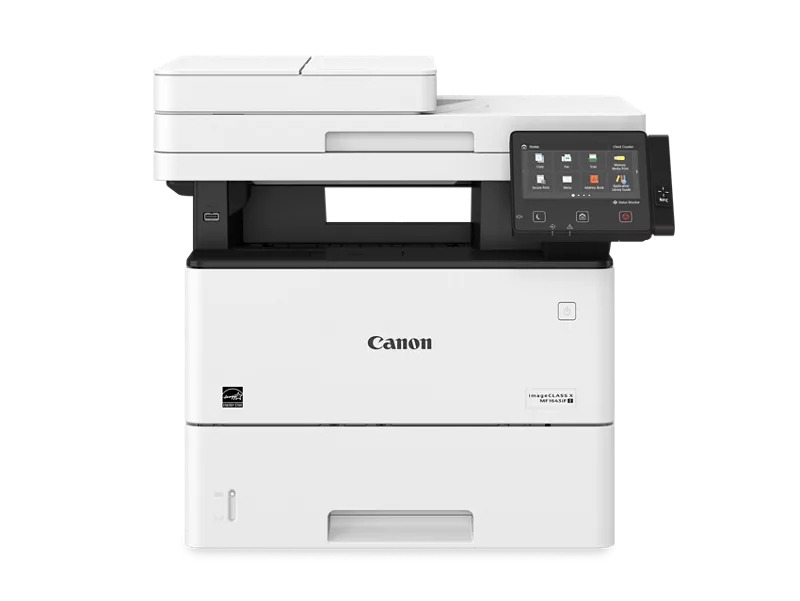

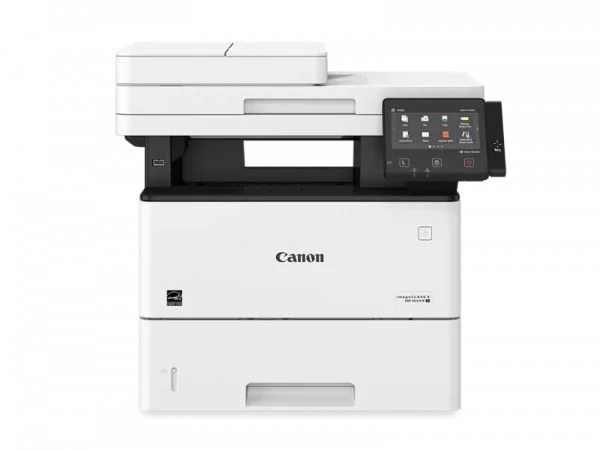

Canon imageCLASS X MF1643iF
Designed for small to mid-size workgroups within an enterprise environment, the Canon imageCLASS X MF1643iF II balances speedy performance, minimal maintenance, and the ability to expand paper capacity for busy groups. A 5″ color touchscreen delivers an intuitive user experience and can be customized by a device administrator to simplify many daily tasks.
| MAIN UNIT | |
| CORE FUNCTIONS | Print, Copy, Scan, Send, Fax |
| PROCESSOR | Canon Custom Processor |
| CONTROL PANEL | Color Touch Panel |
| MEMORY | 1 GB |
| STANDARD INTERFACE CONNECTION | USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection, Near Field Communication |
| PAPER CAPACITY (LETTER, 20 LB. BOND) | Standard: 650 Sheets Maximum: 2,300 Sheets |
| PAPER SOURCES (LETTER, 20 LB. BOND) | Standard: 550-sheet Paper Cassette, 100-sheet Multipurpose Tray Optional (up to three): 550-sheet Paper Cassettes (Paper Feeder PF-C1) |
| PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) | Standard: 150 Sheets |
| SUPPORTED MEDIA TYPES | Cassettes: Thin, Plain, Recycled, Color, Thick, Bond Stack Bypass: Thin, Plain, Recycled, Color, Thick, Bond, Label, Envelope) |
| SUPPORTED MEDIA SIZES | Cassettes: Letter, Legal, Statement, Executive Custom (Min. 4.1" x 5.8" to Max. 8.5" x 14") Stack Bypass: Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3" x 5" to Max. 8.5" x 14") |
| SUPPORTED MEDIA WEIGHTS | Cassette: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2 ) Multipurpose Tray: 16 lb. Bond to 73 lb. Cover (60 to 199 g/m2) |
| WARM-UP TIME | From Power On: 14 Seconds or Less From Sleep Mode: 4 Seconds or Less |
| DIMENSIONS (W x D x H) | 19-7/16” x 18-5/16” x 17-3/16” (494 mm x 465 mm x 452 mm) |
| INSTALLATION SPACE (W x D x H) | 27-7/8" x 43-1/2" (708 x 1105 mm)* |
| WEIGHT4 | Unit: Approx. 41.9 lb. (19.0 kg) |
| OPERATING SYSTEM | Windows® 7/Windows 8.1/Windows 10/ Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016/Windows Server 2019/Mac OS X v10.9 (or later) |
| PRINT SPECIFICATIONS | |
| PRINTING METHOD | Laser Beam Printing |
| PRINT SPEED (COLOR)6 | Up to 45 ppm (Letter); Up to 36 ppm (Legal) |
| FIRST PRINT OUT TIME | Approx. 5.6 Seconds |
| RECOMMENDED MONTHLY PAGE VOLUME | 2,000 - 7,500 Pages |
| PRINT RESOLUTION (dpi) | 600 x 600 |
| STANDARD PAGE DESCRIPTION LANGUAGES | UFR II, PCL®6, PCL®5, Adobe PostScript 3® |
| DOUBLE-SIDED PRINTING | Automatic (Standard) |
| DIRECT PRINT | Available from USB Memory (JPEG, TIFF, PDF) |
| PRINTING FROM MOBILE AND CLOUD-BASED SERVICES1 | Apple® AirPrint,® Canon PRINT Business, Mopria™ Print Service, uniFLOW Secure Mobile Printing8 |
| FONTS | PCL: 93 Fonts PS: 136 Fonts |
| PRINT FEATURES | Secure Print, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations |
| COPY SPECIFICATIONS | |
| COPY SPEED | Up to 45 ppm (Letter); Up to 36 ppm (Legal) |
| FIRST-COPY-OUT TIME (LETTER) | Approx. 6.0 Seconds |
| COPY RESOLUTION (dpi) | 600 x 600 |
| COPY SIZE | Platen and ADF: Up to Legal |
| MULTIPLE COPIES | Up to 999 Copies |
| MAGNIFICATION | 25% - 400% (1% Increments) |
| PRESET REDUCTIONS | 25%, 50%, 64%, 78% |
| PRESET ENLARGEMENTS | 129%, 200%, 400% |
| COPY FEATURES | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Different-Size Originals, Sharpness, Erase Frame, Copy ID Card, Copy Passport |
| SCAN SPECIFICATIONS | |
| TYPE | Single-Pass Duplexing Automatic Document Feeder |
| DOCUMENT FEEDER PAPER CAPACITY | 50 Sheets (20 lb. Bond) |
| DOCUMENT FEEDER SUPPORTED MEDIA SIZES | Legal, Letter, Statement, Custom size: 4-1/8" x 5" to 8-1/2" x 14" |
| DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS | Single- and Double-sided scanning: 14 - 28 lb. Bond (50 - 105 g/m2 ) |
| PLATEN ACCEPTABLE ORIGINALS | Sheet, Book, 3-Dimensional Objects |
| PULL SCAN | ScanGear MF For both TWAIN and WIA |
| SCAN RESOLUTION (dpi) | Up to 600 x 600 |
| SCAN-TO-MOBILE DEVICES | Canon PRINT Business |
| SCAN SPEED (LETTER) (BW/COLOR) | 300 dpi Simplex: Up to 38 ipm (BW)/13ipm (Color) Duplex: Up to 70 ipm (BW)/26 (Color)600 dpi Simplex: Up to 21 ipm (BW) Duplex: Up to 35 ipm (BW) |
| MEMORY MEDIA | Standard USB Memory (JPEG, TIFF, PDF) |
| SEND SPECIFICATIONS | |
| DESTINATION | Email/Internet FAX (SMTP), SMB, FTP |
| ADDRESS BOOK | LDAP (50)/Local (300)/Speed dial (281) |
| SEND RESOLUTION (dpi) | 600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other) |
| COMMUNICATON PROTOCOL | File: FTP, SMB Email/iFax: SMTP, POP3, iFax (Simple) |
| FILE FORMAT | Standard: TIFF, JPEG, PDF(Compact, Searchable, Encrypted, Digital Signature) |
| UNIVERSAL SEND FEATURES | Original Type Selection, Two-sided Original, Density Adjustment, Sharpness, File Name, Subject/Message, E-mail Priority, TX Report, Original Content Orientation |
| FAX SPECIFICATIONS | |
| MODEM SPEED | Super G3: 33.6 kbps G3: 14.4 kbps |
| COMPRESSION METHOD | MH, MR, MMR, JBIG |
| RESOLUTION (dpi) | 400 x 400, 200 x 400, 200 x 200, 200 x 100 |
| SENDING/RECORDING SIZE | Statement to Legal |
| FAX MEMORY | Up to 512 Pages |
| SPEED DIALS | Max. 281 |
| GROUP DIALS/DESTINATIONS | Max. 299 Dials |
| SEQUENTIAL BROADCAST | Max. 310 Addresses |
| MEMORY BACKUP | Yes |
| FAX FEATURES | Two-sided Original, Density (for Scanning), Sharpness, TX Report, RX Mode, Resolutions, Favorite Settings |
| SECURITY SPECIFICATIONS | |
| AUTHENTICATION | Standard: Department ID Authentication, embedded Universal Login Manager, uinFLOW Online Express7 Optional: uniFLOW, uniFLOW Online |
| NETWORK | Standard: IP/Mac Address Filtering, IPSEC, TLS 1.3, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP |
| DOCUMENT | Standard: Secure Print, Encrypted PDF, Device Signature Optional: uniFLOW Secure Print8 |
| DEVICE SECURITY | Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup |
| DEVICE MANAGEMENT AND AUDITING | Administrator Password, Digital Certificate and key Management, Security Policy Setting |
| ENVIRONMENTAL SPECIFICATIONS | |
| OPERATING ENVIRONMENT | Temperature: 50 to 86º F Humidity: 20 to 80% RH (no condensation) |
| POWER REQUIREMENTS | AC 110 - 127 V, 7.1 A, 60 Hz |
| POWER CONSUMPTION | Maximum: Approx. 1440 W Standby: Approx. 17 W Sleep Mode: Approx. 0.9 W Typical Electricity Consumption (TEC) Rating: 1.3 kWh |
| STANDARDS | ENERGY STAR® Qualified, Currently rated EPEAT Silver3 |
| CONSUMABLES | |
| TONER | Toner T06 Black ‐ Yields 20,500 Pages |
DISCLAIMERS
- Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more information, including compatibility, please visit https://www.usa.canon.com/mobile-app. Please see the respective websites for Apple AirPrint and Mopria Print Service for compatibility and additional information.
- Please reference user manuals for details on settings available to export.
- For latest EPEAT ratings (Gold/Silver/Bronze), please visit www.epeat.net.
- Subscription to a third party cloud service is required, and subject to third party terms and conditions.
- Includes consumables.
- Print speed is based on internal testing. Print speed may vary, depending on the number of copies selected as well as the settings for size, type, and orientation of paper.
- No charge for this solution, however activation is required.
- Requires optional uniFLOW Online/uniFLOW.
- Attachment kit required.
- Ask Dealer for reader compatibility information.
- Limited warranty program is subject to certain conditions and restrictions. See warranty card for details.
