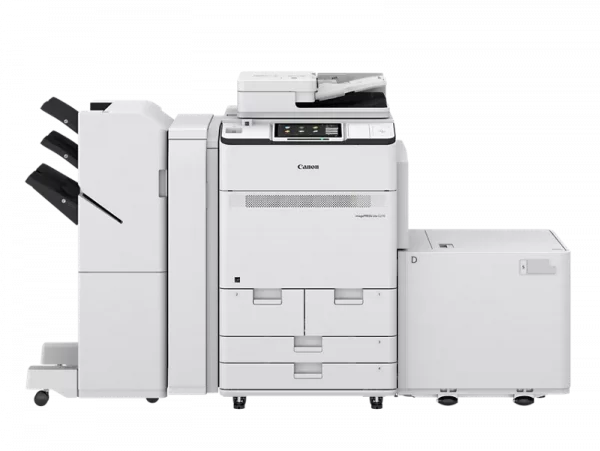

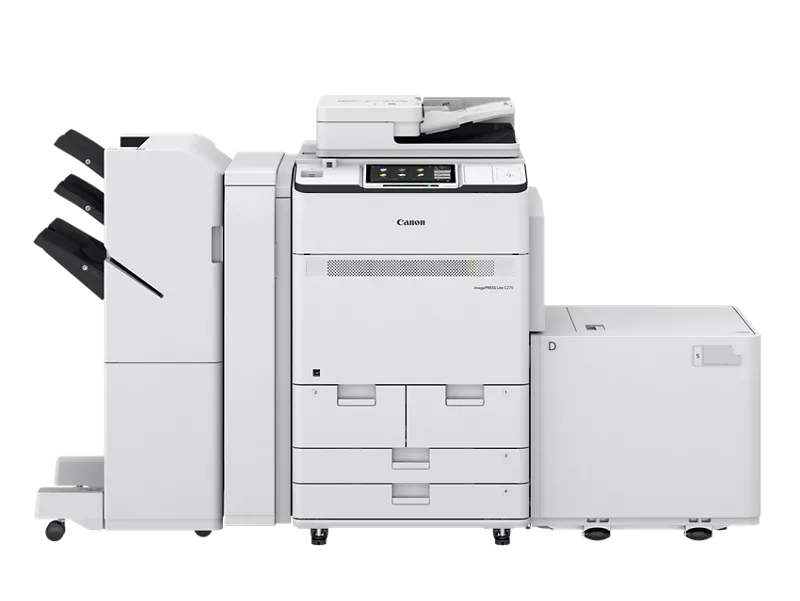

Canon imagePRESS Lite C270
Today’s marketplace necessitates the ability to be resilient and versatile while improving efficiency. At the same time, meeting tight deadlines with a lean staff requires equipment that’s intuitive, adaptive, and reliable while consistently producing work with minimal effort. Introducing the imagePRESS Lite C270 Series of color printers — an outstanding investment that’s designed to deliver the workflow, user-centric control, and remarkable print quality that your essential work demands.
| MARKING UNIT | |
| TECHNOLOGY | Electrophotography |
| PRINT SPEED (COLOR/BW) | 8.5” x 11”: Up to 70/80 ipm
11” x 17: Up to 35/40 ipm |
| PRINT RESOLUTION | 2400 x 2400 dpi |
| FIRST-COPY-OUT TIME | BW: 4.4 seconds
COLOR: 5.4 seconds |
| WARM-UP TIME | From Power ON: Approx 30 Seconds
From Sleep Mode: Approx. 30 Seconds Quick Startup Mode: Approx. 4 Seconds |
| MEMORY | 4.0 GB RAM |
| SOLID STATE DRIVE | Standard: 256 GB/Maximum: 1 TB |
| MIRRORING SOLID STATE DRIVE | Optional: 250 GB, 1 TB
Method: Raid1 |
| PAPER SIZE | Tray 1/2: Letter
Tray 3/4: 5.5” x 7.17” to 13” x 19.2” Stack Bypass: 4” x 5.9” to 13” x 19.2” |
| PAPER CAPACITY | Letter: 3,300 Sheets
11”x17”: 1,100 Sheets Stack Bypass: 250 Sheets |
| PAPER WEIGHT | Letter: 14 lb. Bond to 80 lb. Cover (52 to 220 gsm)
11”x17”: 14 lb. Bond to 140 lb. Cover (52 to 256 gsm) Stack Bypass: 14 lb. Bond to 130 lb. Cover (52 to 350 gsm) |
| AUTOMATIC DUPLEX | Paper Size: Up to 13" x 19.2" Paper Weight: Up to 80 lb. Cover (220 gsm) |
| ENVELOPES | #10, Monarch, ISO-DL (Custom Size: 3.94" x 5.83" to 13" x 19.2") |
| LONG SHEETS | Up to 13” x 51.2” |
| DIRECT PRINT | Available from USB, Advanced Box, Remote UI, and Web Access |
| SUPPORTED FILE TYPES | PDF, TIFF,JPEG, EPS, XPS |
| CONTROL PANEL | 10.1" TFT LCD WSVGA Color Touch-panel |
| POWER CONSUMPTION | Maximum: 2,500 W
Standby: 111.2 W Sleep Mode: 0.9W |
| TEC RATING | 1.45 kWh |
| STANDARDS | ENERGY STAR Certfied |
| POWER SOURCE | 208-240 V AC, 50/60Hz, 12 A |
| WEIGHT | 593 LB. |
| DIMENSIONS (W x D x H) | 27" x 37.1" x 46.7" |
| SCAN SPECIFICATIONS | |
| TYPE | Color Platen and Single-Pass Duplexing Automatic Document Feeder |
| DOCUMENT FEEDER PAPER CAPACITY | 200 sheets |
| DOCUMENT FEEDER SUPPORTED MEDIA SIZES | 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R, Custom Size: 2.75" x 5.5"to 12" x 17" |
| DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS | BW Original: 13 lb. Bond to 80 lb. Cover (50 to 220 gsm)
Color Original: 17 lb. Bond to 80 lb. Cover (64 to 220 gsm) |
| PLATEN ACCEPTABLE ORIGINALS | Sheet, Book, 3-Dimensional Objects
(Height: Up to 2"; Weight: up to 4.4 lb.) |
| PULL SCAN | Color Network ScanGear2 for both Twain and WIA |
| SCAN RESOLUTION (dpi) | 600 x 600, 400 x 400, 300 x 300, 200 x 400,
200 x 200, 200 x 100, 150 x 150, 100 x 100 |
| SCAN SPEED | Single-sided Scanning: 135 ipm
Double-sided Scanning: 270 ipm |
| SEND SPECIFICATIONS | |
| DESTINATION | Email/Internet Fax (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional) |
| COLOR MODE | Automatic-Color Select (Full Color/Grayscale),
Automatic-Color Select (Full Color/Black and White), Full Color, Grayscale, and Black and White |
| ADDRESS BOOK | LDAP (2,000)/Local (1,600)/Speed Dial (200) |
| SEND RESOLUTION | 600 x 600, 400 x 400, 300 x 300, 200 x 400,
200 x 200, 200 x 100, 150 x 150, 100 x 100 |
| COMMUICATION PROTOCOL | File: FTP (TCP/IP), SMB v3.0, WebDAV
Email: SMTP, POP3 |
| FILE FORMAT | TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, PDF A/1-b, Limited Color, Device Signature, User Signature, Trace & Smooth), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| UNIVERSAL SEND FEATURES | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, Email Priority, TX Report, Original Content Orientation, Skip Blank Pages, Detect Feeder Multi Sheet Feed |
| FAX SPECIFICATIONS (OPTIONAL) | |
| MAXIMUM NUMBER OF CONNECTION LINES | 2 |
| MODEM SPEED | Super G3: 33.6 Kbps G3: 14.4 Kbps |
| COMPRESSION METHOD | MH, MR, MMR, JBIG |
| RESOLUTION | 400 x 400, 200 x 400, 200 x 200, 200 x 100 |
| SENDING / RECORDING SIZE | Statement-R to 11" x 17" |
| FAX MEMORY | Up to 30,000 Pages |
| SPEED DIALS | Max. 200 |
| GROUP DIALS / DESTINATIONS | Max. 199 Dials |
| SEQUENTIAL BROADCAST | Max. 256 Addresses |
| MEMORY BACKUP | Yes |
| FAX FEATURES | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density for Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Sender's Name (TTI), Select Line, Selecting the Telephone Line, Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed |
| SECURITY SPECIFICATIONS | |
| AUTHENTICATION AND ACCESS CONTROL | Standard: Universal Log-in Manager, uniFLOW Online
Express, User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in Optional: uniFLOW |
| DATA | Standard: Trusted Platform Module (TPM 2.0), Solid-State Drive Lock, Solid-State Drive Initialize, Mail Box Password Protection, Solid-State Drive Encryption (FIPS140-2 Validated), Verify System at Startup with Auto Recovery, McAfee Embedded Control,HCD-PP Certification
Optional: Solid-State Drive Mirroring, Data Loss Prevention (Requires uniFLOW) |
| NETWORK | Encrypted Secure Print, IP/Mac Address Filtering, IPsec, TLS Encrypted Communication (v1.0/1.1/1.2/1.3), SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration |
| DOCUMENT | Secure Watermark, Secure Print, Forced Hold Printing, Adobe LiveCycle Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signatures |
| INPUT ACCESSORIES | |
| Letter Paper Deck Unit-E1 | |
| PAPER CAPACITY | Up to 3,500 Sheets |
| PAPER SIZE | Letter |
| PAPER WEIGHT | 14 lb. Bond to 140 lb. Index (52 to 256 gsm) |
| POWER SOURCE | From the Main Engine |
| POD Deck Lite-C1 | |
| PAPER CAPACITY | Up to 3,500 Sheets |
| PAPER SIZE | 5.5" x 5.83" to 13" x 19.2" |
| PAPER WEIGHT | 14 lb. Bond to 130 lb. Cover (52 to 350 gsm) |
| ENVELOPES | 5.5" x 5.83" to 13" x 19.2" |
| POWER SOURCE | 120-127 V, 60 Hz, 2.2 A |
| WEIGHT | 168 lb. |
| DIMENSIONS (WxDxH) | 25.9" x 27.0" x 22.6" |
| Long Sheet Feeding and Catch Tray-B1 | |
| PAPER CAPACITY | 1 Sheet |
| PAPER SIZE | 4" x 5.83" to 13" x 51.2" |
| PAPER WEIGHT | 17 lb. Bond to 130 lb. Cover (64 to 350 gsm) |
| ENVELOPES | 4" x 5.83" to 13" x 51.2" |
| WEIGHT | 2 lb. |
| DIMENSIONS (WxDxH) | 85.6" x 56.1" x 56.1" |
| Multi Drawer Paper Deck-E1 | |
| PAPER CAPACITY | Up to 5,000 Sheets |
| PAPER SIZE | Up to 13" x 19" |
| PAPER WEIGHT | 14 lb. Bond to 130 lb. Cover (52 to 350 gsm) |
| POWER SOURCE | From the Main Engine |
| WEIGHT | 392.4 lb. |
| DIMENSIONS (WxDxH) | 40" x 31.5" x 42.5" (990 mm x 800 mm x 1080 mm) |
| Stack Bypass-D1 | |
| PAPER CAPACITY | Up to 250 Sheets |
| PAPER SIZE | Supports Up to 13" x 19" |
| PAPER WEIGHT | 14 lb. Bond to 130 lb. Cover (52 to 350 gsm) |
| POWER SOURCE | From the Main Engine |
| WEIGHT | 15.4 lb. |
| DIMENSIONS (WxDxH) | 3.2" x 20.4" x 13.9" (82 mm x 518 mm x 351 mm |
| FINISHING ACCESSORIES | |
| Copy Tray-R2 | |
| PAPER CAPACITY | 5 Up to 250 Sheets |
| PAPER SIZE | 14 lb. Bond to 130 lb. Cover (52 to 350 gsm) |
| PAPER WEIGHT | 4" x 5.83" to 13" x 19.2" |
| WEIGHT | 2.6 lb. |
| DIMENSIONS (WxDxH) | 16.6" x 15" x 6.8" |
| Document Insertion Unit-R1 | |
| TRAY CAPACITY | Up to 200 Sheets (Upper Tray & Lower Tray) |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover (52 to 300 gsm) |
| PAPER SIZE | 7.2" x 7.2" to 13" x 19.2" |
| POWER SUPPLY | 100-240 V, 50/60 Hz, 1.0 A |
| WEIGHT | 135 lb. |
| DIMENSIONS (WxDxH) | 29.4" x 31.3" x 55.4" |
| Document Insertion/Folding Unit-K1 | |
| NUMBER OF TRAYS | 1 |
| TRAY CAPACITY | Up to 100 Sheets |
| INSERTION PAPER SIZE | 13" x 19", 12" x 18", 11" x 17",
Legal, Letter, Letter-R, Executive |
| INSERTION PAPER WEIGHT | 16 lb. Bond to 140 lb. Index (60 to 256 gsm) |
| FOLD TYPES | C-Fold, Z-Fold |
| FOLD PAPER SIZE | C-Fold: Letter-R
Z-Fold: 11" x 17", Legal, Letter-R |
| FOLD PAPER WEIGHT | 16 lb. Bond to 28 lb. Bond (60 to 105 gsm) |
| POWER REQUIREMENTS | 100-240 V AC, 50/60 Hz, 1 A |
| WEIGHT | 167.6 lb. |
| DIMENSIONS (WxDxH) | 26.1" x 26.8" x 48.9 |
| Multi Function Professional Puncher-C1 | |
| PAPER WEIGHT PUNCHING | 20 lb. Bond to 110 lb. Cover (75 to 300 gsm) |
| PAPER SIZE PUNCHING | Letter-R, Letter, Legal, 11" x 17", 12" x 18" |
| DIE SET PATTERNS | Loose Leaf 3-Hole/5-Hole, Velo Bind 11-Hole,
Plastic Comb 19-Hole, Twin Loop 21-Hole/ 32-Hole, Color Coil 44-Hole/Crease Die |
| POWER SUPPLY | 100-127 V, 60 Hz, 15 A |
| WEIGHT | 225 lb. |
| DIMENSIONS (WxDxH) | 17.5" x 31.3" x 41" |
| Paper Folding Unit-K1 | |
| PAPER SIZE | Double Parallel: Legal, Letter-R
C-Fold/Accordion/Half-Fold: Letter-R Z-Fold: Letter-R, 11" x 17", Legal |
| PAPER WEIGHTS | 14 lb. Bond to 28 lb. Bond (52 to 105 gsm) |
| POWER SOURCE | From Finisher |
| WEIGHT | 157 lb. |
| DIMENSIONS (WxDxH) | 13.3" x 31.3" x 46.9" |
| Staple Finisher-AC1/Booklet Finisher-AC1 | |
| TRAY CAPACITY | Top Tray: Up to 250 Sheets
Middle Tray: Up to 250 Sheets Lower Tray: Up to 3,000 Sheets |
| SADDLE-STITCHCAPACITY | Up to 25 Booklets |
| PAPER WEIGHT | Stacking: 14 lb. Bond to 130 lb. Cover (52 to 350 gsm)
Corner Stapling: 14 lb. Bond to 140 lb. Index (52 to 256 gsm) Booklet-Making: 14 lb. Bond to 140 lb. Index (52 to 256 gsm) |
| STAPLE POSITIONS | Corner, Double-Side, Eco |
| PAPER SIZE | Stapling: Executive, Letter-R, Letter, Legal, 11" x 17"
Saddle Finisher: 5.5" x 7.2" to 11.8" x 17" |
| STAPLE CAPACITY | Corner/Double-Side: Up to 65 Sheets
Eco-Stitched: Up to 5 Sheets Saddle-Stitched: Up to 20 Sheets V-Folding: Up to 3 Sheets Without Stitch |
| POWER SOURCE | From the Main Unit |
| WEIGHT | Staple Finisher: 80 lb.
Booklet Finisher: 131 lb. |
| DIMENSIONS (WxDxH) | 25.5" x 25.9" x 44.1" |
| 2-/3-Hole Puncher Unit-A1 | |
| PAPER SIZES | 2-Hole: Legal, Executive, Letter, Letter-R, 11" x 17"
3-Hole: 11" x 17", Letter, Executive |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover (52 to 300 gsm) |
| POWER SUPPLY | From the Finisher |
| Staple Finisher-AG/Booklet Finisher-AG1 | |
| TRAY CAPACITY | Top Tray: Up to 1,000 Sheets
Lower Tray: Up to 4,000 Sheets Saddle-Stitch Tray: Up to 30 Booklets or Limitless |
| PAPER WEIGHT | Stacking: 14 lb. Bond to 130 lb. Cover (52 to 350 gsm)
Corner Stapling: 14 lb. Bond to 110 lb. Cover (52 to 300 gsm) Booklet-Making: 14 lb. Bond to 110 lb. Cover (52 to 300 gsm) |
| STAPLE POSITIONS | Corner, Double-Side |
| PAPER SIZE | Stapling: 8.3" x 11" to 11.7" x 17"
Saddle Finisher: 8.3" x 11" to 13" x 19.2" |
| STAPLING CAPACITY | Corner/Double-Side: Up to 100 Sheets
Saddle-Stitched: Up to 25 Sheets V-Folding: Up to 5 Sheets Without Stitch |
| POWER SOURCE | 120/240 V, 60 Hz, 8 A |
| WEIGHT | Staple Finisher: 287 lb.
Booklet Finisher: 397 lb. |
| DIMENSIONS (WxDxH) | 31.5" x 31.3" x 48.8" |
| Puncher Unit-BS1 | |
| PAPER SIZES | 2-Hole: Legal, Executive, Letter, Letter-R, 11" x 17",
Custom Size (7.2" x 7.2" to 11.8" x 17") 3-Hole: 11" x 17", Letter, Executive-R, Custom Size (9.5" x 7.2" to 11.8" x 17") |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover (52 to 300 gsm) |
| PUNCH WASTE CAPACITY | Up to 6,000 Sheets |
| POWER SUPPLY | From the Finisher |
| Booklet Trimmer-G1 | |
| MARGIN TRIMMING | Front-Edge Trim |
| TRIM AMOUNT | 0.08" to 1.1" |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover (52 to 300 gsm) |
| POWER SUPPLY | From the Finisher |
| WEIGHT | 392 lb. |
| DIMENSIONS (WxDxH) | 82.5" x 30.8" x 41" |
| PRINT SERVERS | |
| imagePRESS Printer Kit-G1E (Standard) | |
| PDL | PS, PCL,UFR |
| MEMORY | 3.5 GB |
| HARD DRIVE | 1.5 TB |
| imagePRESS Server M20 | |
| FIERY SYSTEM SOFTWARE | FS500 |
| CPU | Intel Pentium Processor G4400, 3.7 GHz |
| MEMORY | 8 GB |
| HARD DRIVE | 500 GB |
| OS | Linux |
| STANDARD | Fiery Command WorkStation, Paper Catalog,
Fiery Spot On, Fiery Remote Scan, Hot Folders |
| OPTIONAL | APPE, Automation Package, ColorRight Package,
Impose, Compose, JobMaster |
