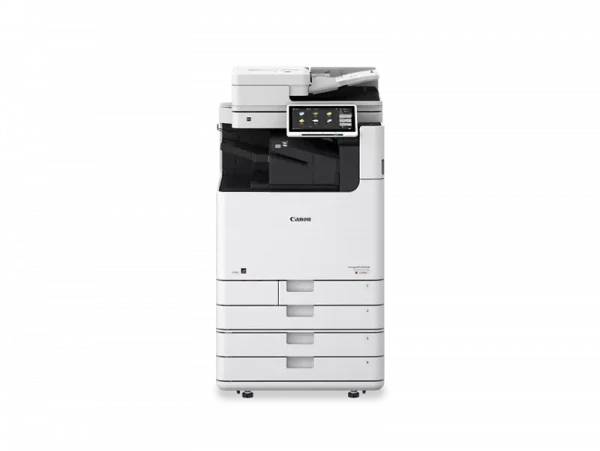

Canon iR ADVANCE DX C5850i

Canon iR ADVANCE DX C5850i

The imageRUNNER ADVANCE DX C5850i is capable of color print speeds of up to 50 ppm, and is designed for businesses of all sizes that require a productive, reliable, feature-rich, and easy-to-use multifunction printer. The imageRUNNER ADVANCE DX C5850i features advanced scan functionality, easy-to-implement cloud-ready capabilities, and a foundation of strong security features.

Category:
MAIN UNIT
TYPE Color Laser Multifunctional
CORE FUNCTIONS Standard: Print, Copy, Scan, Send, Store
Optional: Fax
CONTROL PANEL 10.1" TFT LCD WSVGA Color Flat-panel
MEMORY 5.0 GB RAM
SOLID STATE DRIVE Standard: (SSD) 256 GB
Optional: (SSD) 256 GB, 1 TB
INTERFACE CONNECTION Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy
Others
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Copy Control Interface
PAPER CAPACITY (LETTER, 20 LB. BOND) Standard: 1,200 Sheets
Maximum: 6,350 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND) Standard: Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass
Optional: Dual 550-Sheet Paper Cassettes (Cassette Feeding Unit-AM1), 2,450-Sheet High Capacity Paper Cassette (High Capacity Cassette Feeding Unit-C1), 2,700-Sheet Paper Deck (Paper Deck Unit-F1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) Standard: 250 Sheets Maximum: 3,450 Sheets (with Staple Finisher-AB1 or Booklet Finisher-AB1 and 3rd Copy Tray Kit-A1)
FINISHING CAPABILITIES Standard: Collate, Group With Options: Collate, Group, Offset, Staple, Saddle-Stitch, Hole Punch, Eco Staple, Staple On Demand
SUPPORTED MEDIA TYPES Multi-Purpose Tray: Thin, Plain, Recycled, Color, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope
SUPPORTED MEDIA SIZES Upper Cassette: Letter, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 11-3/4" x 8-1/2")
Lower Cassette: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 12" x 18")
Multi-Purpose Tray: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Envelope Custom Size (3-7/8" x 3-1/2" to 12-5/8" x 18"), Custom Size/ Free Size (3-7/8" x 5-1/2" to 12-5/8" x 18")
SUPPORTED MEDIA WEIGHTS Cassettes: 14 lb. Bond to 140 lb. Index (52 to 256 g/m2 )
Stack Bypass: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m2 )
Duplexing: 14 lb. Bond to 140 lb. Index (52 to 256 g/m2 )
PRINT/COPY SPEED (BW AND COLOR) Up to 50 ppm (Letter); Up to 30 ppm (Letter-R); Up to 29 ppm (Legal); Up to 27 ppm (11" x 17")
WARM-UP TIME From Power On: Approx. 6 Seconds1
From Sleep Mode: Approx. 7 Seconds2
Quick Startup Mode: Approx. 4 Seconds3
DIMENSIONS (W x D x H) 24-3/8" x 28-1/2" x 36-7/8" (620 x 722 x 937 mm)4
INSTALLATION SPACE (W x D x H) Basic: 44-7/8" x 45-3/4" (1,138 x 1,162 mm) (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
Fully Configured: 73-1/2" x 45-3/4" (1,866 x 1,162 mm ) (Staple Finisher-AB1 or Booklet Finisher-AB1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)
WEIGHT5 Approx. 231.5 lb. (108 kg)
PRINT SPECIFICATIONS
PRINT RESOLUTION (dpi) 1200 x 1200
STANDARD PAGE DESCRIPTION LANGUAGES UFR II, PCL6, Adobe PS 3
SUPPORTED FILES PDF, TIFF, JPEG, EPS6, XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Universal Print by Microsoft®, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FONTS PCL: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),7 Barcode Fonts8
PS: 136 Roman
OPERATING SYSTEM 9 UFRII/PS: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X (10.11 or later)
PCL: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019 PPD: Windows® 7/8.1/10, Mac OS X(10.10 or later)
COPY SPECIFICATIONS
FIRST-COPY-OUT-TIME As fast as 3.3 seconds (BW)/ 4.9 seconds (Color)
COPY RESOLUTION (dpi) 600 x 600
MULTIPLE COPIES Up to 999
MAGNIFICATION 25%-400% (1% Increments)
PRESET REDUCTION / ENLARGEMENT 25%, 50%, 64%, 73%, 78%, 100% (1:1), 121%, 129%, 200%, 400%
SCAN SPECIFICATIONS
TYPE Single-Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY Up to 200 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R, Custom Size: 2-3/4" x 5-1/2" to 12" x 17"
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS Single-Sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm) (BW, CL)
Double-Sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm) (BW, CL)
PLATEN ACCEPTABLE ORIGINALS Sheet, Book, 3-Dimensional Objects
PULL SCAN Color Network ScanGear for both Twain and WIA
Supported OS: Windows® 7/8.1/10/Server 2008/ Server 2008 R2/Server 2012/ Server 2012 R2/Server 2016
SCAN RESOLUTION (dpi) Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/ IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES A range of solutions is available to provide scanning to compatible mobile devices and certain cloud-based services depending on your requirements.
SCAN SPEED (LETTER) Single-sided Scanning: 135/135 (300 dpi), 80/80 (600 dpi)
Double-sided Scanning: 270/270 (300 dpi), 160/90 (600 dpi)
SEND SPECIFICATIONS
DESTINATION Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
ADDRESS BOOK LDAP (2,000)/Local (1,600)/Speed Dial (200)
SEND RESOLUTION Push: Up to 600 x 600
Pull: Up to 600 x 600
COMMUICATION PROTOCOL File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV
Email: SMTP, POP3
FILE FORMAT Standard: TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, User Signature, PDF A/1-b, Limited Color, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
FAX SPECIFICATIONS
MODEM SPEED Super G3: 33.6 Kbps
G3: 14.4 Kbps
COMPRESSION METHOD MH, MR, MMR, JBIG
RESOLUTION 400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZE Statement-R to 11" x 17"
FAX MEMORY Up to 30,000 Pages (2,000 jobs)
SPEED DIALS Max. 200
GROUP DIALS / DESTINATIONS Max. 199 Dials
SEQUENTIAL BROADCAST Max. 256 Addresses
MEMORY BACKUP Yes
STORE SPECIFICATIONS
MAIL BOX SIMPLE (NUMBER SUPPORTED) 100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, Maximum 10,000 Pages (2,000 jobs) Stored
ADVANCED BOX Communication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 8.1/10)
Concurrent Connections (Max.)
SMB: 64
WebDAV: 3
ADVANCED BOX AVAILABLE DISC SPACE Approx. 16 GB (Standard HDD)
Approx. 480 GB (With Optional 1 TB HDD)
SECURITY SPECIFICATIONS
AUTHENTICATION AND ACCESS CONTROL User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express10 (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
DOCUMENT SECURITY Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print11), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/ Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
NETWORK SECURITY TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/ Wired LAN), Disabling Unused Functions (Enabling/ Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send-Virus Concerns for E-mail Reception
DEVICE SECURITY Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection)
DEVICE MANAGEMENT AND AUDITING Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT Temperature: 50 to 86º F
Humidity: 20 to 80% RH (Relative Humidity)
POWER REQUIREMENTS 110-127V, 60Hz, 12A
POWER CONSUMPTION Maximum: Approx. 1,800 W
Standby: Approx. 56.1 W12
Sleep Mode: Approx. 0.8 W13
Typical Electricity Consumption (TEC) Rating:14 0.57 kWh
STANDARDS ENERGY STAR® Certified
Rated EPEAT® Gold
CONSUMABLES
TONER15

GPR-61 Toner BK/C/M/Y
GPR-61L Toner C/M/Y

TONER YIELD (ESTIMATED @ 5% COVERAGE)

GPR-61 Toner BK: 71,000 Pages
GPR-61 Toner C/M/Y: 60,000 Pages
GPR-61L Toner C/M/Y: 26,000 Pages

FOOTNOTES
  1. Time from device power-on, until copy ready (not print reservation).
  2. Time from exiting Sleep mode to when printing is operational.
  3. Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
  4. Includes main unit and either Cassette Feeding Unit-AQ1, High Capacity Cassette Feeding Unit-C1, or Cabinet Type-V.
  5. Includes main unit, consumables, and Cassette Feeding Unit-AQ1.
  6. EPS can be printed directly only from the Remote User Interface.
  7. Requires the optional PCL International Font Set-A1.
  8. Requires the optional Barcode Printer Kit-D1.
  9. Other operating systems and environments, including AS/400, UNIX, Linux, and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.
  10. No charge for this solution; however, activation is required.
  11. Requires uniFLOW Online/uniFLOW.
  12. Reference Value (measured one unit).
  13. 0.8 W Sleep mode not available in all circumstances due to certain settings.
  14. Based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0.
  15. GPR-61L Toner also available for Color (C, M, Y). Yield (estimated @ 5% coverage) is 26,000 images.
